Varicode.cpp File Reference

implementation of encoder (C) 2018 Jordan Sherer kn4cr.nosp@m.d@gm.nosp@m.ail.c.nosp@m.om - All Rights Reserved More...

#include "Varicode.h"
#include "JS8_JSC/JSC.h"
#include "JS8_Mode/DecodedText.h"
#include <QLoggingCategory>
#include <QMap>
#include <QSet>
#include <boost/format.hpp>
#include <vendor/CRCpp/CRC.h>
#include <cmath>
#include <stdexcept>

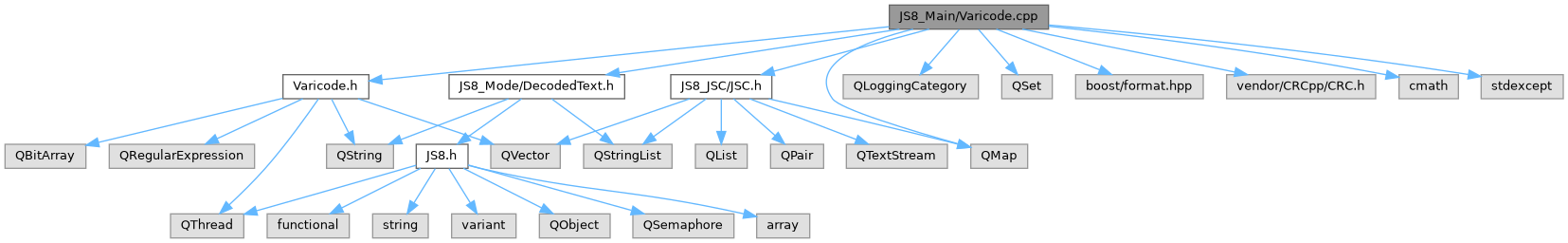

Include dependency graph for Varicode.cpp:

Macros
#define	CRCPP_INCLUDE_ESOTERIC_CRC_DEFINITIONS
#define	CRCPP_USE_CPP11
#define	JS8_FAST_DATA_CAN_USE_HUFF   0
#define	ALLOW_SEND_COMPOUND   1
#define	ALLOW_SEND_COMPOUND_DIRECTED   1
#define	AUTO_PREPEND_DIRECTED   1
#define	AUTO_REMOVE_MYCALL   1
#define	AUTO_PREPEND_DIRECTED_ALLOW_TEXT_CALLSIGNS   1
#define	ALLOW_FORCE_IDENTIFY   1

Functions
QRegularExpression	directed_re ("^"+callsign_pattern+optional_cmd_pattern+optional_num_pattern)
QRegularExpression	heartbeat_re (R"(^\s*(?<callsign>[@](?:ALLCALL|HB)\s+)?(?<type>CQ CQ CQ|CQ DX|CQ QRP|CQ CONTEST|CQ FIELD|CQ FD|CQ CQ|CQ|HB|HEARTBEAT(?!\s+SNR))(?:\s(?<grid>[A-R]{2}[0-9]{2}))?\b)")
QRegularExpression	compound_re ("^\\s*[`]"+callsign_pattern+"(?<extra>"+optional_grid_pattern+optional_cmd_pattern+optional_num_pattern+")")
int	mwattsToDbm (int mwatts)
int	dbmTomwatts (int dbm)
bool	isValidCompoundCallsign (QStringView callsign)
QString	packHuffMessage (const QString &input, const QVector< bool > prefix, int *n)
QString	packCompressedMessage (const QString &input, QVector< bool > prefix, int *n)

Variables
const int	nalphabet = 41
QString	alphabet
QString	alphabet72
QString	grid_pattern
QString	orig_compound_callsign_pattern
QString	base_callsign_pattern
QString	compound_callsign_pattern
QString	pack_callsign_pattern
QString	alphanumeric
QMap< QString, int >	directed_cmds
QSet< int >	allowed_cmds
QSet< int >	autoreply_cmds = {0, 2, 3, 4, 6, 9, 10, 11, 12, 13, 14, 16, 30}
QSet< int >	buffered_cmds = {5, 9, 10, 11, 12, 13, 15, 24}
QSet< int >	snr_cmds = {25, 29}
QMap< int, int >	checksum_cmds
QString	callsign_pattern = QString("(?<callsign>[@]?[A-Z0-9/]+)")
QString	optional_cmd_pattern
QString	optional_grid_pattern = QString("(?<grid>\\s?[A-R]{2}[0-9]{2})?")
QString	optional_extended_grid_pattern
QString	optional_num_pattern
QMap< QString, QString >	hufftable
QChar	ESC = '\\'
QChar	EOT = '\x04'
quint32	nbasecall = 37 * 36 * 10 * 27 * 27 * 27
quint16	nbasegrid = 180 * 180
quint16	nusergrid = nbasegrid + 10
quint16	nmaxgrid = (1 << 15) - 1
QMap< QString, quint32 >	basecalls
QMap< quint32, QString >	cqs
QMap< quint32, QString >	hbs
QMap< int, int >	dbm2mw

Detailed Description

implementation of encoder (C) 2018 Jordan Sherer kn4cr.nosp@m.d@gm.nosp@m.ail.c.nosp@m.om - All Rights Reserved

Variable Documentation

allowed_cmds

QSet<int> allowed_cmds

Initial value:

= {-1, 0,  1,  2,  3,  4,  5,  6,  7,  8,  9,
        10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20,
        21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31}

alphabet

QString alphabet

Initial value:

             = {
"0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ+-./?"}

alphabet72

QString alphabet72

Initial value:

               = {
"0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz-+/?."}

alphanumeric

QString alphanumeric

Initial value:

                 = {
"0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ /@"}

base_callsign_pattern

QString base_callsign_pattern

Initial value:

                          = {
R"((?<callsign>\b(?<base>([0-9A-Z])?([0-9A-Z])([0-9])([A-Z])?([A-Z])?([A-Z])?)(?<portable>[/][P])?\b))"}

checksum_cmds

QMap<int, int> checksum_cmds

Initial value:

= {{5, 16},  {9, 16},  {10, 16}, {11, 16},
             {12, 16}, {13, 16}, {15, 0},  {24, 16}}

compound_callsign_pattern

QString compound_callsign_pattern

Initial value:

                              = {
R"((?<callsign>(?:[@]?|\b)(?<extended>[A-Z0-9\/@][A-Z0-9\/]{0,2}[\/]?[A-Z0-9\/]{0,3}[\/]?[A-Z0-9\/]{0,3})\b))"}

cqs

QMap<quint32, QString> cqs

Initial value:

         = {
    {0, "CQ CQ CQ"}, {1, "CQ DX"}, {2, "CQ QRP"}, {3, "CQ CONTEST"},
    {4, "CQ FIELD"}, {5, "CQ FD"}, {6, "CQ CQ"},  {7, "CQ"},
}

dbm2mw

QMap<int, int> dbm2mw

Initial value:

            = {
    {0, 1},
    {3, 2},
    {7, 5},
    {10, 10},
    {13, 20},
    {17, 50},
    {20, 100},
    {23, 200},
    {27, 500},
    {30, 1000},
    {33, 2000},
    {37, 5000},
    {40, 10000},
    {43, 20000},
    {47, 50000},
    {50, 100000},
    {53, 200000},
    {57, 500000},
    {60, 1000000},
}

grid_pattern

QString grid_pattern

Initial value:

                 = {
R"((?<grid>[A-X]{2}[0-9]{2}(?:[A-X]{2}(?:[0-9]{2})?)*)+)"}

hbs

QMap<quint32, QString> hbs

Initial value:

         = {
    {0, "HB"},
    {1, "HB"},
    {2, "HB"},
    {3, "HB"},
    {4, "HB"},
    {5, "HB"},
    {6, "HB"},
    {7, "HB"},
}

optional_cmd_pattern

QString optional_cmd_pattern

Initial value:

                         =
QString("(?<cmd>\\s?(?:AGN[?]|QSL[?]|HW CPY[?]|MSG "
        "TO[:]|SNR[?]|INFO[?]|GRID[?]|STATUS[?]|QUERY "
        "MSGS[?]|HEARING[?]|(?:(?:STATUS|HEARING|QUERY CALL|QUERY "
        "MSGS|QUERY|CMD|MSG|NACK|ACK|73|YES|NO|HEARTBEAT "
        "SNR|SNR|QSL|RR|SK|FB|INFO|GRID|DIT DIT)(?=[ ]|$))|[?> ]))?")

optional_extended_grid_pattern

QString optional_extended_grid_pattern

Initial value:

                                   =
QString("^(?<grid>\\s?(?:[A-R]{2}[0-9]{2}(?:[A-X]{2}(?:[0-9]{2})?)*))?")

optional_num_pattern

QString optional_num_pattern

Initial value:

                         =
QString("(?<num>(?<=SNR)\\s?[-+]?(?:3[01]|[0-2]?[0-9]))?")

orig_compound_callsign_pattern

QString orig_compound_callsign_pattern

Initial value:

                                   = {
R"((?<callsign>(\d|[A-Z])+\/?((\d|[A-Z]){2,})(\/(\d|[A-Z])+)?(\/(\d|[A-Z])+)?))"}

pack_callsign_pattern

QString pack_callsign_pattern

Initial value:

                          = {
R"(([0-9A-Z ])([0-9A-Z])([0-9])([A-Z ])([A-Z ])([A-Z ]))"}
