UI_Constructor Class Reference

Inheritance diagram for UI_Constructor:

Collaboration diagram for UI_Constructor:

Public Types
using	Frequency = Radio::Frequency
using	FrequencyDelta = Radio::FrequencyDelta
using	Mode = Modes::Mode

Public Slots
void	showSoundInError (const QString &errorMsg)
void	showSoundOutError (const QString &errorMsg)
void	showStatusMessage (const QString &statusMsg)
void	dataSink (qint64 frames)
void	guiUpdate ()
void	setXIT (int n)
void	qsy (int hzDelta)
void	onDriftChanged (qint64 new_drift_ms)
void	setFreqOffsetForRestore (int freq, bool shouldRestore)
bool	tryRestoreFreqOffset ()
void	changeFreq (int)
bool	hasExistingMessageBufferToMe (int *pOffset)
bool	hasExistingMessageBuffer (int submode, int offset, bool drift, int *pPrevOffset)
bool	hasClosedExistingMessageBuffer (int offset)
void	logCallActivity (CallDetail d, bool spot=true)
void	logHeardGraph (QString from, QString to)
QString	lookupCallInCompoundCache (QString const &call)
void	cacheActivity (QString key)
void	restoreActivity (QString key)
void	clearActivity ()
void	clearBandActivity ()
void	clearRXActivity ()
void	clearCallActivity ()
void	createGroupCallsignTableRows (QTableWidget *table, const QString &selectedCall, bool &showIconColumn)
void	displayTextForFreq (QString text, int freq, QDateTime date, bool isTx, bool isNewLine, bool isLast)
void	writeNoticeTextToUI (QDateTime date, QString text)
int	writeMessageTextToUI (QDateTime date, QString text, int freq, bool isTx, int block=-1)
bool	isMessageQueuedForTransmit ()
bool	isInDecodeDelayThreshold (int seconds)
void	prependMessageText (QString text)
void	addMessageText (QString text, bool clear=false, bool selectFirstPlaceholder=false)
void	confirmThenEnqueueMessage (int timeout, int priority, QString message, int offset, Callback c)
void	enqueueMessage (int priority, QString message, int offset, Callback c)
void	resetMessage ()
void	resetMessageUI ()
void	restoreMessage ()
void	initializeDummyData ()
void	initializeGroupMessage ()
bool	ensureCallsignSet (bool alert=true)
bool	ensureKeyNotStuck (QString const &text)
bool	ensureNotIdle ()
bool	ensureCanTransmit ()
bool	ensureCreateMessageReady (const QString &text)
QString	createMessage (QString const &text, bool *pDisableTypeahead)
QString	appendMessage (QString const &text, bool isData, bool *pDisableTypeahead)
QString	createMessageTransmitQueue (QString const &text, bool reset, bool isData, bool *pDisableTypeahead)
void	resetMessageTransmitQueue ()
	Resets the frame-level transmission state after a message completes.
QPair< QString, int >	popMessageFrame ()
void	tryNotify (const QString &key)
void	processDecodeEvent (JS8::Event::Variant const &)
void	updateCQButtonDisplay ()
void	updateHBButtonDisplay ()

Public Member Functions
	UI_Constructor (QString const &program_info, QDir const &temp_directory, bool multiple, MultiSettings *settings, QWidget *parent=nullptr)

Protected Member Functions
void	keyPressEvent (QKeyEvent *) override
void	closeEvent (QCloseEvent *) override
void	childEvent (QChildEvent *) override
bool	eventFilter (QObject *, QEvent *) override

Friends
class	WSJTXMessageMapper

Constructor & Destructor Documentation

UI_Constructor()

UI_Constructor::UI_Constructor ( QString const & program_info, QDir const & temp_directory, bool multiple, MultiSettings * settings, QWidget * parent = nullptr )

explicit

Initialize WSJT-X protocol if enabled

Creates and configures the WSJT-X message client and mapper when the WSJT-X protocol is enabled. Sets up signal connections for configuration changes and disables the native JSON client if it conflicts with WSJT-X on the same port/address.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

dataSink

void UI_Constructor::dataSink ( qint64 frames )

slot

Perform real to complex FFT; note that the Fortran code performed this operation in the four2a subroutine, which contains a cache of plans. However, since the FFTW3 library itself caches, this resulted in double caching, so as an experiment we're allowing the library to handle caching.

Note that the FFTW library requires all calls but for the plan execution, i.e., fftwf_execute(), to be serialized. The library doesn't require prescriptive serialization, anything will do so long as the result is one thread at a time.

Providing room for an extra complex value, i.e., a pair of floats, real and imaginary parts, allows us to use the same buffer for the FFT input and output.

While the memory for the FFT can come from anywhere, if we ask the library for it, it'll guarantee that it's aligned for use of SIMD instructions, which will in turn allow it to use them.

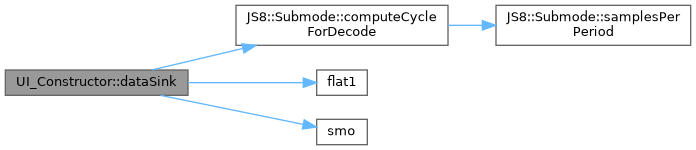

Here is the call graph for this function:

Here is the caller graph for this function:

guiUpdate

void UI_Constructor::guiUpdate ( )

slot

The name guiUpdate suggests updating of the views from the models (in MVC terms, but we don't do MVC in this project), animations and stuff. While it indeed does that, this also contains controller code.

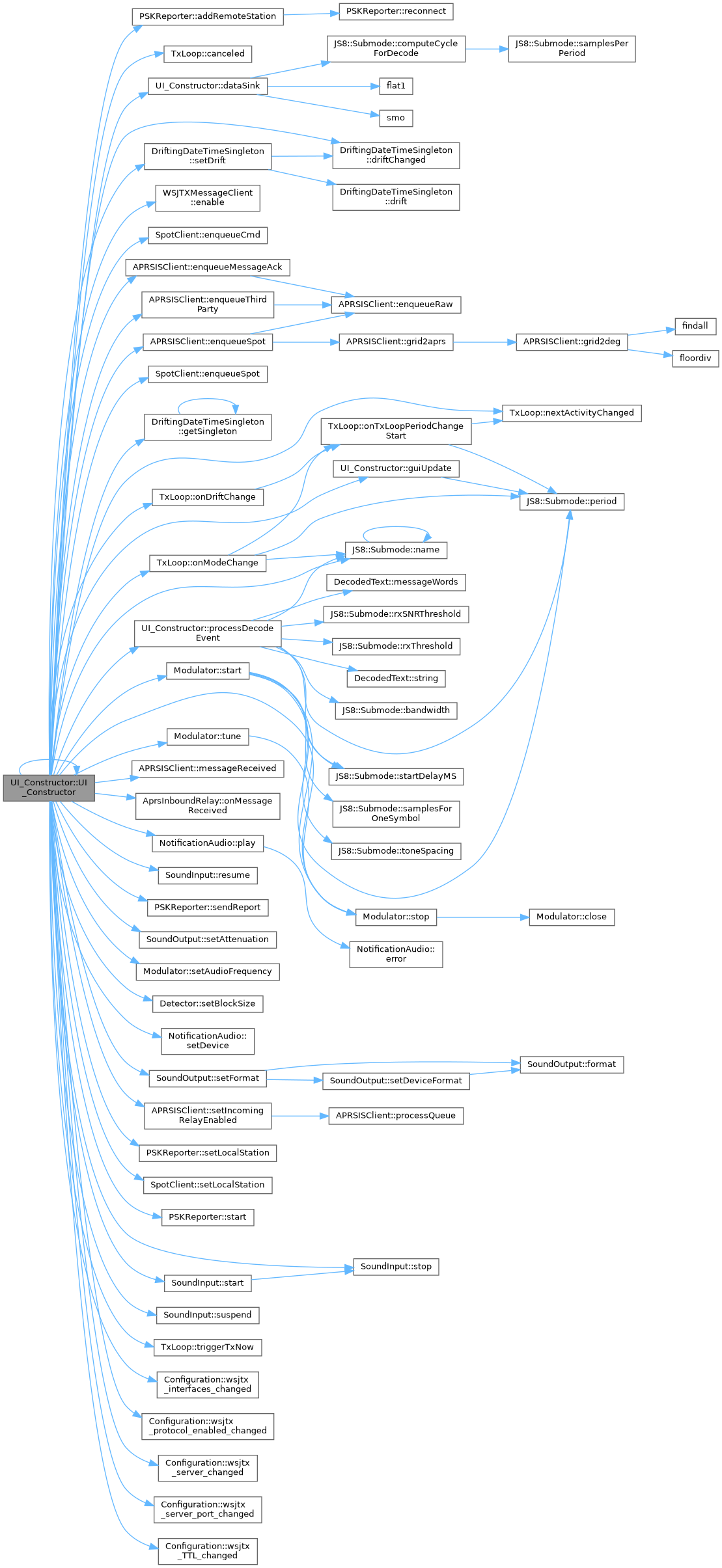

Here is the call graph for this function:

Here is the caller graph for this function:

processDecodeEvent

void UI_Constructor::processDecodeEvent ( JS8::Event::Variant const & event )

slot

Send decode to WSJT-X protocol

Converts JS8Call decode events to WSJT-X Decode messages and sends them to WSJT-X protocol clients. For HeartBeat messages, ensures the message text includes callsign and grid so clients can properly associate them with grid plots.

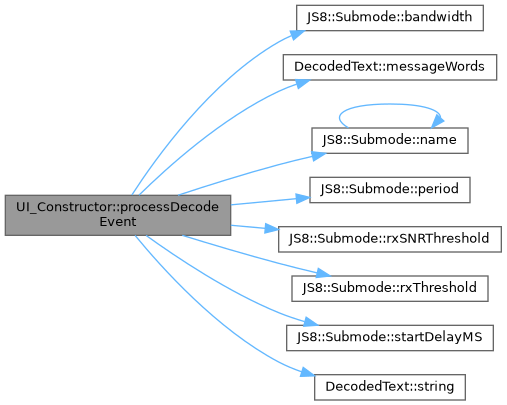

Here is the call graph for this function:

Here is the caller graph for this function:

resetMessageTransmitQueue

void UI_Constructor::resetMessageTransmitQueue ( )

slot

Resets the frame-level transmission state after a message completes.

This function clears the frame queue and resets frame counters, preparing the system for the next message transmission. Importantly, it does NOT clear m_txMessageQueue, which holds pending high-level messages (e.g., queued APRS relay messages) that should be transmitted after the current transmission completes.

Note

Called via resetMessage() -> on_stopTxButton_clicked() when transmission ends.

---

The documentation for this class was generated from the following files:

• JS8_UI/mainwindow.h
• JS8_Mainwindow/buildQueryMenu.cpp
• JS8_Mainwindow/checkVersion.cpp
• JS8_Mainwindow/dataSink.cpp
• JS8_Mainwindow/displayBandActivity.cpp
• JS8_Mainwindow/displayCallActivity.cpp
• JS8_Mainwindow/initializeDummyData.cpp
• JS8_Mainwindow/initializeGroupMessage.cpp
• JS8_Mainwindow/processBufferedActivity.cpp
• JS8_Mainwindow/processCommandActivity.cpp
• JS8_Mainwindow/processDecodeEvent.cpp
• JS8_Mainwindow/processRxActivity.cpp
• JS8_Mainwindow/UI_Constructor.cpp
• JS8_UI/mainwindow.cpp
