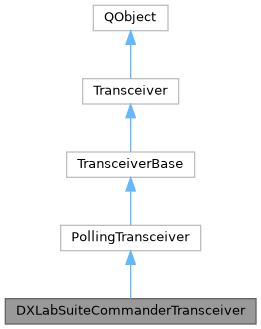

Inheritance diagram for DXLabSuiteCommanderTransceiver:

[legend]

Collaboration diagram for DXLabSuiteCommanderTransceiver:

[legend]

Public Member Functions
	DXLabSuiteCommanderTransceiver (std::unique_ptr< TransceiverBase > wrapped, QString const &address, bool use_for_ptt, int poll_interval, QObject *parent=nullptr)
Public Member Functions inherited from TransceiverBase
void	start (unsigned sequence_number) noexcept override final
void	set (TransceiverState const &, unsigned sequence_number) noexcept override final
void	stop () noexcept override final
TransceiverState const &	state () const
Public Member Functions inherited from Transceiver
Q_SIGNAL void	resolution (int)
Q_SIGNAL void	update (Transceiver::TransceiverState const &, unsigned sequence_number) const
Q_SIGNAL void	failure (QString const &reason) const
Q_SIGNAL void	finished () const

Static Public Member Functions
static void	register_transceivers (TransceiverFactory::Transceivers *, int id)

Protected Member Functions
int	do_start () override
void	do_stop () override
void	do_frequency (Frequency, MODE, bool no_ignore) override
void	do_tx_frequency (Frequency, MODE, bool no_ignore) override
void	do_mode (MODE) override
void	do_ptt (bool on) override
void	poll () override
Protected Member Functions inherited from PollingTransceiver
	PollingTransceiver (int poll_interval, QObject *parent)
void	do_sync (bool force_signal=false, bool no_poll=false) override final
void	do_post_start () override final
void	do_post_stop () override final
void	do_post_frequency (Frequency, MODE) override final
void	do_post_tx_frequency (Frequency, MODE) override final
void	do_post_mode (MODE) override final
void	do_post_ptt (bool=true) override final
bool	do_pre_update () override final
Protected Member Functions inherited from TransceiverBase
	TransceiverBase (QObject *parent)
virtual void	hamlib_bug_bandaid (TransceiverState const &)
void	update_rx_frequency (Frequency)
void	update_other_frequency (Frequency=0)
void	update_split (bool)
void	update_mode (MODE)
void	update_PTT (bool=true)
void	update_complete (bool force_signal=false)
void	offline (QString const &reason)
Protected Member Functions inherited from Transceiver
	Transceiver (QObject *parent)

Additional Inherited Members
Public Types inherited from Transceiver
enum	MODE { UNK , CW , CW_R , USB , LSB , FSK , FSK_R , DIG_U , DIG_L , AM , FM , DIG_FM }
using	Frequency = Radio::Frequency
