APRS-IS client responsible for sending and receiving APRS frames. More...

#include <APRSISClient.h>

Inheritance diagram for APRSISClient:

Collaboration diagram for APRSISClient:

Public Slots
void	setIncomingRelayEnabled (bool enabled)
	Enable or disable persistent inbound message relay.
void	setSkipPercent (float skipPercent)
void	setServer (QString host, quint16 port)
void	setPaused (bool paused)
void	setLocalStation (QString mycall, QString passcode)
void	enqueueSpot (QString by_call, QString from_call, QString grid, QString comment)
	Enqueue a spot frame for APRS-IS.
void	enqueueThirdParty (QString by_call, QString from_call, QString text)
	Enqueue a third-party message frame for APRS-IS.
void	enqueueMessageAck (QString from_call, QString to_call, QString messageId)
	Enqueue a standard APRS message ACK frame.
void	sendReports ()

Signals
void	messageReceived (QString from, QString to, QString message, QString messageId)
	Emitted when a parsed APRS-IS message is received.

Public Member Functions
	APRSISClient (QString host, quint16 port, QObject *parent=nullptr)
	Construct a new APRSISClient object.
bool	isPasscodeValid ()
void	enqueueRaw (QString aprsFrame)
	Enqueue a raw APRS frame for APRS-IS.
void	processQueue (bool disconnect=true)
	Process the APRS-IS frame queue.

Static Public Member Functions
static quint32	hashCallsign (QString callsign)
	Compute APRS-IS passcode for a callsign.
static QString	loginFrame (QString callsign, QString filter=QString())
	Build an APRS-IS login frame.
static QPair< float, float >	grid2deg (QString grid)
	Convert grid locator to degrees.
static QPair< QString, QString >	grid2aprs (QString grid)
	Convert grid locator to APRS format.
static QString	stripSSID (QString call)
	Strip SSID from callsign.
static QString	replaceCallsignSuffixWithSSID (QString call, QString base)
	Replace callsign suffix with SSID.

Detailed Description

APRS-IS client responsible for sending and receiving APRS frames.

Constructor & Destructor Documentation

◆ APRSISClient()

APRSISClient::APRSISClient	(	QString	host,
		quint16	port,
		QObject *	parent = nullptr )

Construct a new APRSISClient object.

Construct a new APRSISClient::APRSISClient object.

Parameters

host	APRS-IS server host.
port	APRS-IS server port.
parent	QObject parent.
host
port
parent

Member Function Documentation

◆ enqueueMessageAck

void APRSISClient::enqueueMessageAck	(	QString	from_call,
		QString	to_call,
		QString	messageId )

slot

Enqueue a standard APRS message ACK frame.

Enqueue a standard APRS message ACK frame for APRS-IS.

Parameters

from_call	Source callsign for the ACK message.
to_call	Destination callsign being acknowledged.
messageId	APRS message identifier to acknowledge.
from_call	Source callsign (appears as the message sender).
to_call	Destination callsign to acknowledge.
messageId	APRS message identifier (preserved exactly).

Here is the call graph for this function:

Here is the caller graph for this function:

◆ enqueueRaw()

void APRSISClient::enqueueRaw ( QString aprsFrame )

Enqueue a raw APRS frame for APRS-IS.

Parameters

aprsFrame

Here is the caller graph for this function:

◆ enqueueSpot

void APRSISClient::enqueueSpot	(	QString	by_call,
		QString	from_call,
		QString	grid,
		QString	comment )

slot

Enqueue a spot frame for APRS-IS.

Parameters

by_call
from_call
grid
comment

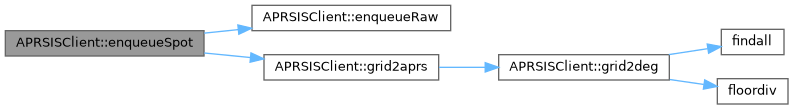

Here is the call graph for this function:

Here is the caller graph for this function:

◆ enqueueThirdParty

void APRSISClient::enqueueThirdParty	(	QString	by_call,
		QString	from_call,
		QString	text )

slot

Enqueue a third-party message frame for APRS-IS.

Parameters

by_call
from_call
text

Here is the call graph for this function:

Here is the caller graph for this function:

◆ grid2aprs()

QPair< QString, QString > APRSISClient::grid2aprs ( QString grid )

static

Convert grid locator to APRS format.

Parameters

grid

Returns: QPair<QString, QString>

Here is the call graph for this function:

Here is the caller graph for this function:

◆ grid2deg()

QPair< float, float > APRSISClient::grid2deg ( QString locator )

static

Convert grid locator to degrees.

Parameters

locator

Returns: QPair<float, float>

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hashCallsign()

quint32 APRSISClient::hashCallsign ( QString callsign )

static

Compute APRS-IS passcode for a callsign.

Parameters

callsign Callsign to hash.

Returns: APRS-IS passcode.

Parameters

callsign

Returns: quint32

Here is the caller graph for this function:

◆ loginFrame()

QString APRSISClient::loginFrame	(	QString	callsign,
		QString	filter = QString() )

static

Build an APRS-IS login frame.

Create a login frame for APRS-IS.

Parameters

callsign	Local station callsign.
filter	Optional APRS-IS filter string.

Returns: Login frame string.

Parameters

callsign
filter

Returns: QString

Here is the call graph for this function:

Here is the caller graph for this function:

◆ messageReceived

void APRSISClient::messageReceived	(	QString	from,
		QString	to,
		QString	message,
		QString	messageId )

signal

Emitted when a parsed APRS-IS message is received.

Parameters

from	APRS sender callsign.
to	APRS destination callsign.
message	APRS message payload without message ID suffix.
messageId	APRS message identifier (if present).

Here is the caller graph for this function:

◆ processQueue()

void APRSISClient::processQueue ( bool disconnect = true )

Process the APRS-IS frame queue.

Parameters

disconnect

Here is the caller graph for this function:

◆ replaceCallsignSuffixWithSSID()

QString APRSISClient::replaceCallsignSuffixWithSSID	(	QString	call,
		QString	base )

static

Replace callsign suffix with SSID.

Parameters

call
base

Returns: QString

◆ setIncomingRelayEnabled

void APRSISClient::setIncomingRelayEnabled ( bool enabled )

slot

Enable or disable persistent inbound message relay.

Enable or disable persistent inbound relay connections.

Parameters

enabled True to keep a connected session for inbound relay.

When enabled, the client keeps an active connection so inbound APRS messages can be received and relayed. When disabled, connections are closed once the outbound queue drains.

Parameters

enabled

Here is the call graph for this function:

Here is the caller graph for this function:

◆ stripSSID()

QString APRSISClient::stripSSID ( QString call )

static

Strip SSID from callsign.

Parameters

call

Returns: QString

The documentation for this class was generated from the following files:

JS8_Main/APRSISClient.h
JS8_Main/APRSISClient.cpp
